Modularity And Oddballs

Oddjob's extension points.

In this section we take a look at the many options for making our classes available to Oddjob. We'll learn how to tell Oddjob to use nice short element names like <copy> and we'll learn how to write an Oddball which is an Oddjob plugin.

The Class System

In the first instance Oddjob finds its classes...

We can prove this by copying an example class:

$ mkdir opt/classes/org
$ mkdir opt/classes/org/oddjob
$ mkdir opt/classes/org/oddjob/devguide
$ cp examples/classes/org/oddjob/devguide/HelloWorldJob.class opt/classes/org/oddjob/devguide
$ java -jar run-oddjob.jar -f examples/devguide/hello1.xml
Hello World!

The Descriptor Factory

How can we use our own XML elements instead of boring old <bean> elements? Provide an implementation of an ArooaDescriptorFactory.

When Oddjob starts it has one of these factory things that scans the classpath for any number of META-INF/arooa.xml XML files which it expects to be able to parse to create another factory. It joins all these little factories together and creates a big factory (For those that like design patterns this is of course the classic Composite Pattern).

There's an example of one of these XML files in the examples directory called helloperson-arooa.xml. It's for our HelloPersonJob example from the previous section and it looks like this.

<arooa:descriptor xmlns:arooa="http://rgordon.co.uk/oddjob/arooa">
    <components>
        <arooa:bean-def element="hello" className="org.oddjob.devguide.HelloPersonJob"/>
    </components>
    <values>
        <arooa:bean-def element="person" className="org.oddjob.devguide.Person"/>
    </values>
</arooa:descriptor>
Now as Arooa is a Java Bean Framework, it probably comes as no surprise to learn that this is Java Bean implementation of an ArooaDescriptorFactory and it's parsed with... Arooa of course. See <arooa:descriptor> in the reference for more on how to configure this bean.

If we copy the descriptor:

$ cp examples/devguide/helloperson-arooa.xml examples/classes/META-INF/arooa.xml

We can modify our original configuration to become:

<oddjob>
    <job>
        <hello formal="true">
            <person>
                <person title="Mr" firstname="John" surname="Smith"/>
            </person>
        </hello>
    </job>
</oddjob>

And run it:

$ java -jar run-oddjob.jar -cp examples/classes -f examples/devguide/helloperson2.xml
Hello Mr Smith.

Dynamic Design

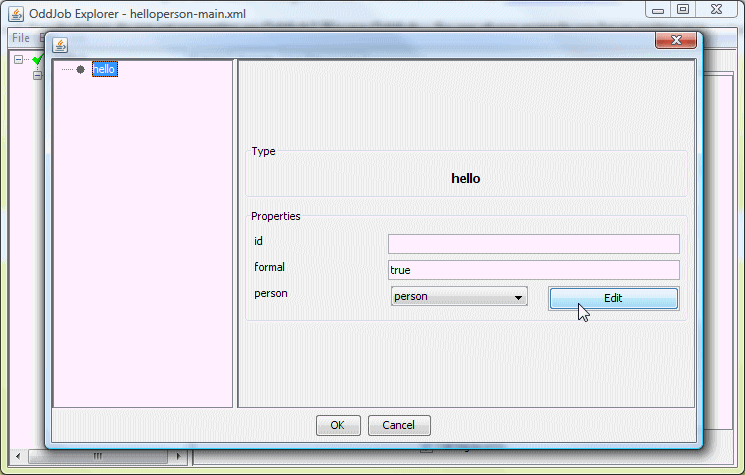

Once a component has been given an element to class mapping, Oddjob Designer will automatically create a form for it:

Component Design

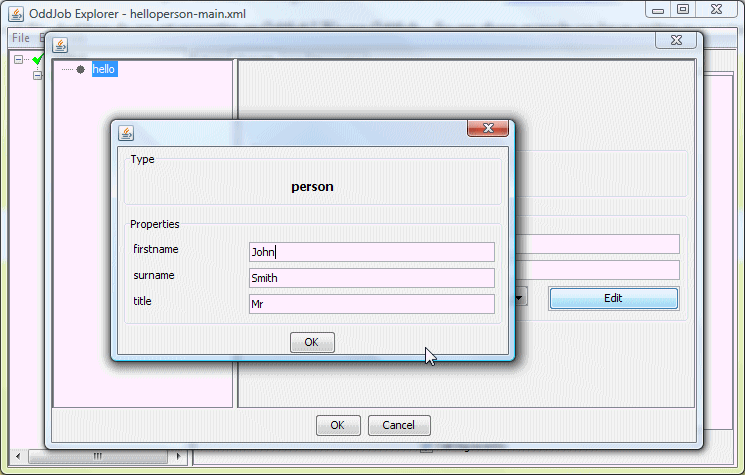

And for person too:

Property Design

Ok, not pretty - but it can make a pleasant change from XML.

Per Oddjob Modularity

A nested Oddjob job within Oddjob can also be configured with it's own class loader and descriptor factory.

<oddjob id="this">
    <job>
        <oddjob file="${this.dir}/helloperson2.xml">
            <descriptorFactory>
                <import file="${this.dir}/helloperson-arooa.xml"/>
            </descriptorFactory>
            <classLoader>
                <url-class-loader>
                    <files>
                        <file file="${this.dir}/../classes"/>
                    </files>
                </url-class-loader>
            </classLoader>
        </oddjob>
    </job>
</oddjob>

This does the same as the above. No classpath required.

$ java -jar run-oddjob.jar -f examples/devguide/helloperson-main.xml
Hello Mr Smith.

The difference is that a new class loader is created by Oddjob and used when processing the descriptor factory to load the HelloPersonJob class.

Oddballs

Oddballs are Oddjob's plugin architecture.

Oddballs extends the above features of Oddjob modularity by defining a recognised directory structure for deploying a set of job classes and their dependent libraries.

An Oddball is any directory in Oddjob's oddballs directory. Oddballs find their classes...

(Familiar to those who know Servlets. But there's no web.xml, instead...)

When the Oddball loads it scans this classpath for any number of META-INF/arooa.xml XML file from which it creates it's ArooaDescriptorFactory.

Pre-Installed Oddballs

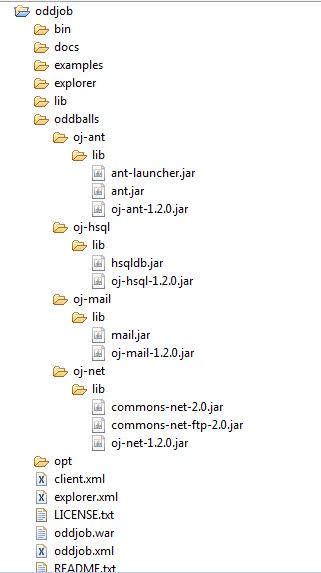

Oddjob comes pre-installed with some Oddballs for Ant tasks, mail, FTP, and an HSQL database server. Here's a screenshot of a deployed Oddjob and it's Oddballs:

Oddjob with Oddballs

Developing an Oddball

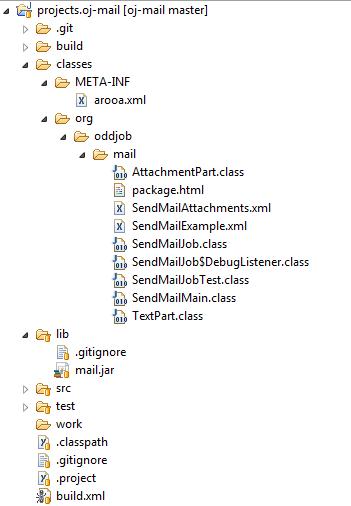

In the deployed Oddballs above, the META-INF/arooa.xml file is combined with Oddjob job beans in a jar for neat deployment. While developing an Oddball ensuring the project directory also adheres to the Oddball layout allows for testing without any deployment:

Developing an Oddball

Launching with Odballs not In The Oddballs Directory

Here's an eclipse launch configuration used to Launch Oddjob with all it's Oddballs:

<launchConfiguration type="org.eclipse.jdt.launching.localJavaApplication">
<listAttribute key="org.eclipse.debug.core.MAPPED_RESOURCE_PATHS">
<listEntry value="/projects.oddjob/src/java/org/oddjob/Main.java"/>
</listAttribute>
<listAttribute key="org.eclipse.debug.core.MAPPED_RESOURCE_TYPES">
<listEntry value="1"/>
</listAttribute>
<stringAttribute key="org.eclipse.jdt.launching.MAIN_TYPE" value="org.oddjob.Main"/>
<stringAttribute key="org.eclipse.jdt.launching.PROGRAM_ARGUMENTS" value="-op ${workspace_loc:projects.oj-ant};${workspace_loc:projects.oj-examples};${workspace_loc:projects.oj-hsql};${workspace_loc:projects.oj-mail};${workspace_loc:projects.oj-net};${workspace_loc:projects.oj-spring}/target;"/>
<stringAttribute key="org.eclipse.jdt.launching.PROJECT_ATTR" value="projects.oddjob"/>
</launchConfiguration>

The -op argument stands for 'Oddball Path'. Notice that the Spring Oddball (oj-spring) points to a 'target' directory. This is because it is built with Maven. Fortunately a Maven Install creates a directory structure that is Oddball conformant too!

The Spring Oddball

The Spring Oddball is a separate download. It's available from Sourceforge here. To deploy the Spring Oddball simply download the binary and unzip it into the Oddjob's oddballs directory, and restart Oddjob.

Un-Installing Oddballs

To un-install an Oddball, simply move it out of the oddballs directory, and restart Oddjob.

Using Oddball Jars In Your Own App Classpath

If you want to use an Oddball jar with your own application classpath, you can can just drop it in with your own libs but the arooa.xml will not be automatically loaded. To load it we can use use a ClassPathDescriptorFactory.html. Here's an example of using the And Oddball jars without it being an Oddball.

<oddjob id="this">
    <job>
        <oddjob file="${this.dir}/hello-from-ant.xml">
            <descriptorFactory>
                <bean class="org.oddjob.arooa.deploy.ClassPathDescriptorFactory" excludeParent="true"/>
            </descriptorFactory>
            <classLoader>
                <url-class-loader>
                    <files>
                        <files>
                            <list>
                                <file file="${my-app.dir}/classes"/>
                                <files files="${my-app.dir}/lib/*.jar"/>
                            </list>
                        </files>
                    </files>
                </url-class-loader>
            </classLoader>
        </oddjob>
    </job>
</oddjob>

Explicitly Loading Oddballs For a Nested Oddjob

An Oddball or many Oddballs can be explicitly loaded using the <oddballs> type

<oddjob id="this">
    <job>
        <oddjob file="${this.dir}/echo-ant-classpath.xml">
            <descriptorFactory>
                <oddballs>
                    <files>
                        <file file="${my-app.dir}"/>
                    </files>
                </oddballs>
            </descriptorFactory>
        </oddjob>
    </job>
</oddjob>

Extending an Oddballs Classpath

If you want to extend an Oddballs classpath you can do so by using a <url-class-loader> and refering to the class loader of the component as the parent class loader.

<oddjob id="this">
  <job>
    <ant id="my-ant" baseDir="${this.dir}">
      <tasks>
        <xml>
          <tasks>
            <whichresource resource="/org/oddjob/devguide/MyAntTask.class" property="my-task.url"/>
            <echo message="${my-task.url}"/>
          </tasks>
        </xml>
      </tasks>
      <output>
        <stdout/>
      </output>
      <classLoader>
        <url-class-loader>
          <files>
            <file file="${this.dir}/../classes"/>
          </files>
          <parent>
            <value value="${my-ant.class.classLoader}"/>
          </parent>
        </url-class-loader>
      </classLoader>
    </ant>
  </job>
</oddjob>

The author was hoping to show the running of a custom task using our extended classpath - However, although our task can be found by Ant, as, if you run this example you will see, Ant's Taskdef doesn't use an Ant's projects own core classloader! Hopefully though you get the point. Oddjob's build process (oj-assembly in the source distribution) uses this technique to ensure that the ant-junit.jar is available during the build.
